Temperature Smart Sensor with internal sensor


REQUEST INFORMATION

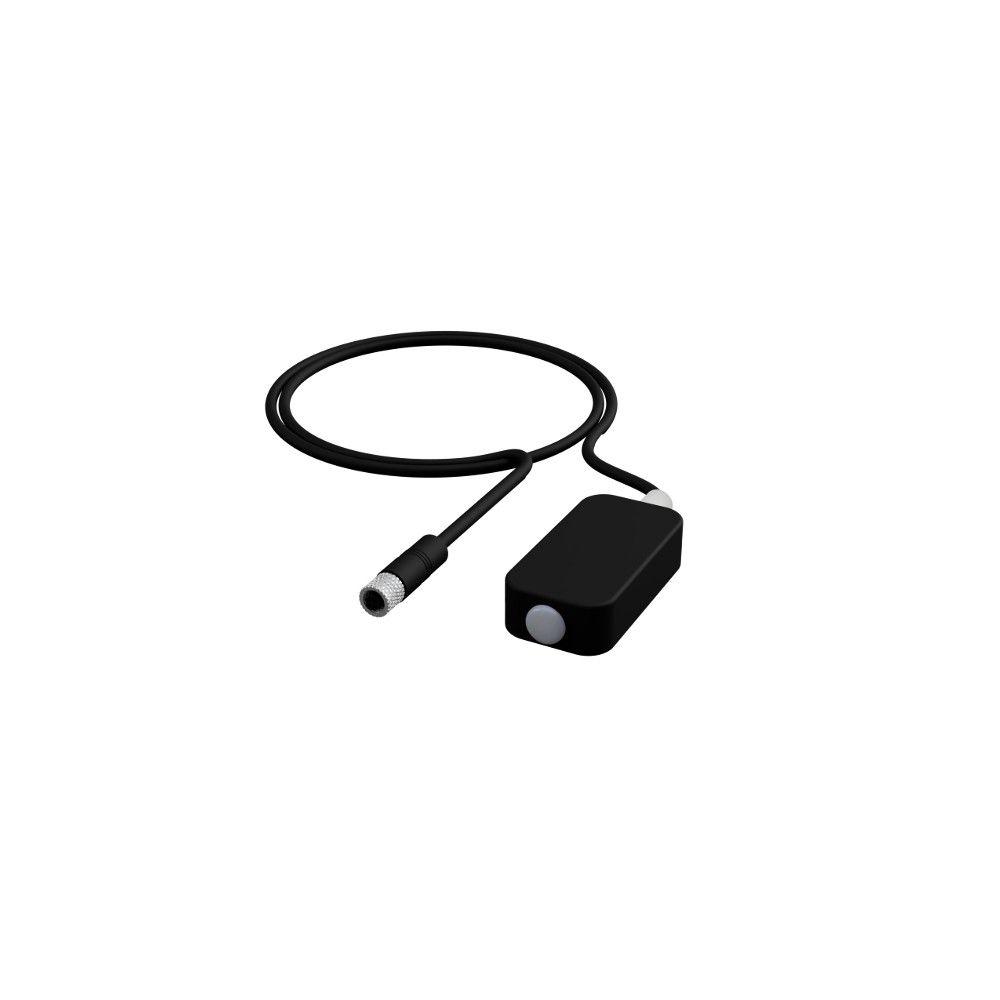

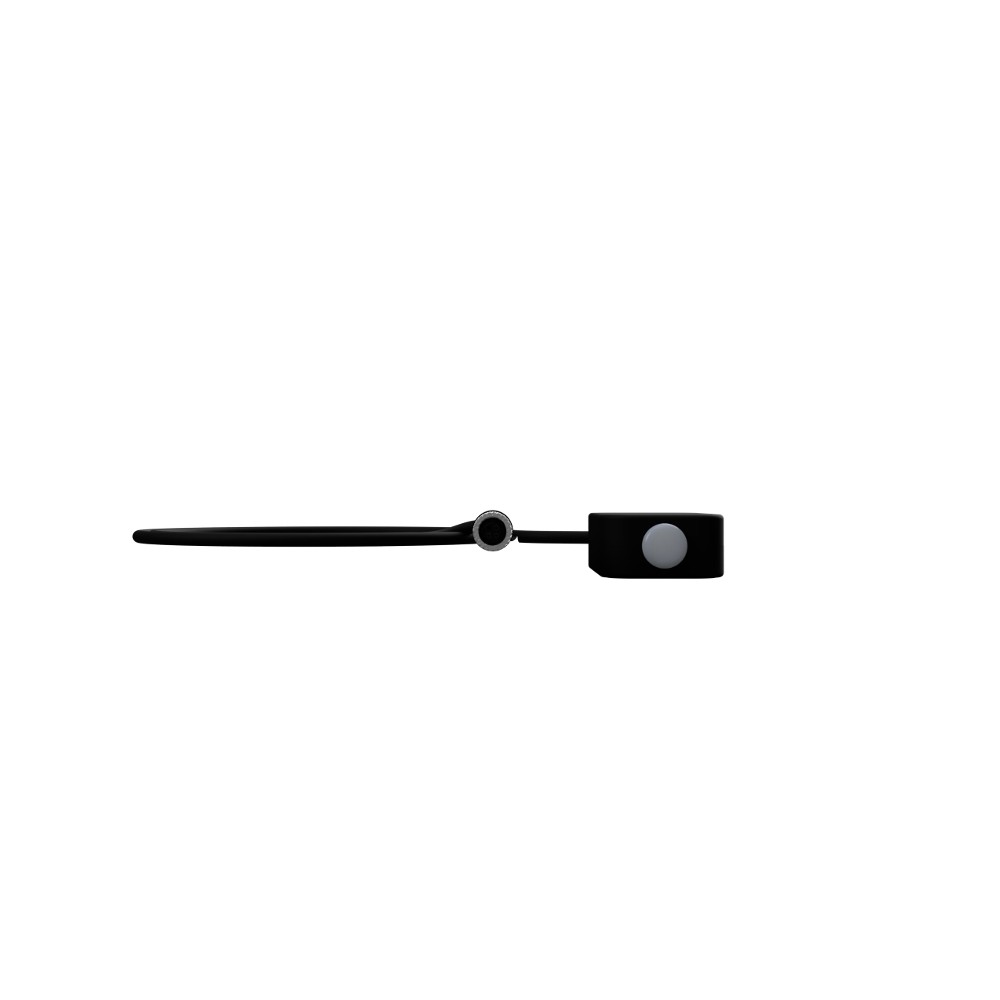

Temperature Smart Sensor with internal sensor.

The more you buy, the more you save!

10-49: 5% discount
50-199: 10% discount
200-499: 15% discount
500+: contact us for a personalized quote!
art Temperature Sensor with digital and calibrated internal sensor.

Discount directly in the cart!


  • Connector
  • 4 Wires

50,00 € tax incl.

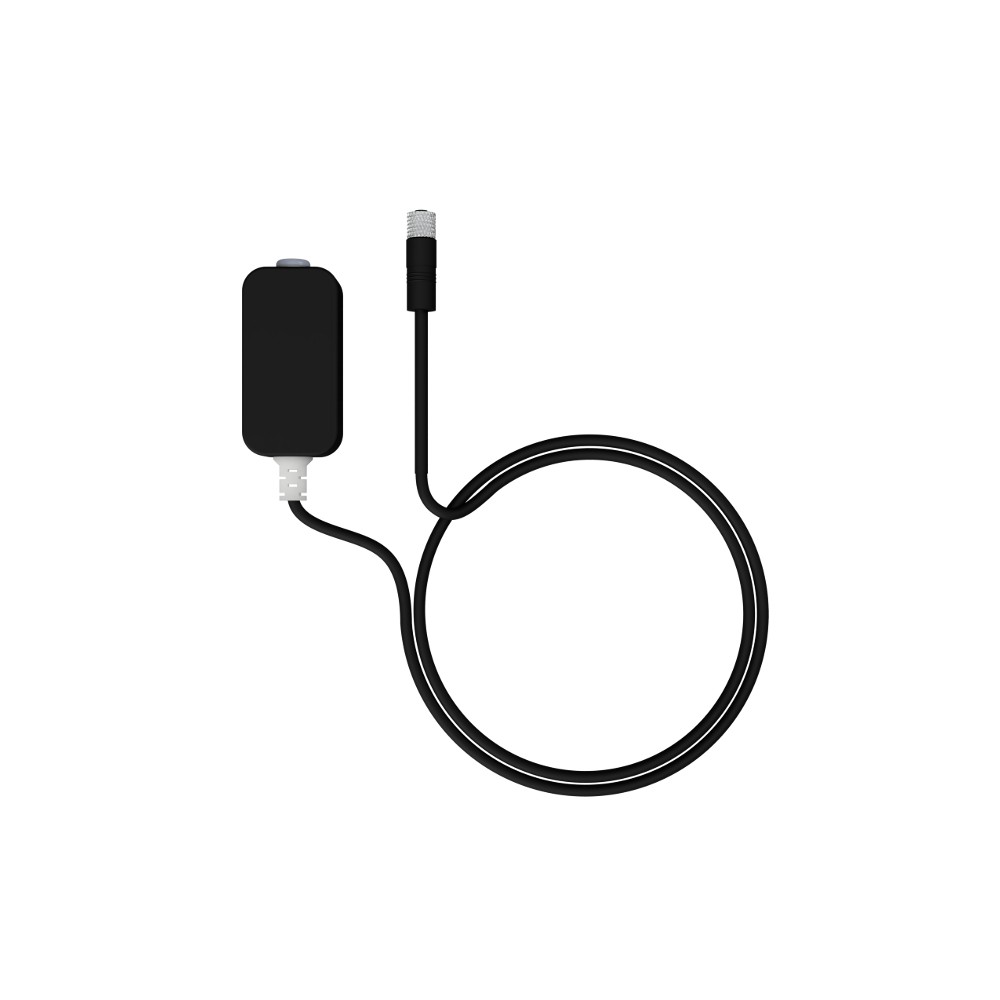

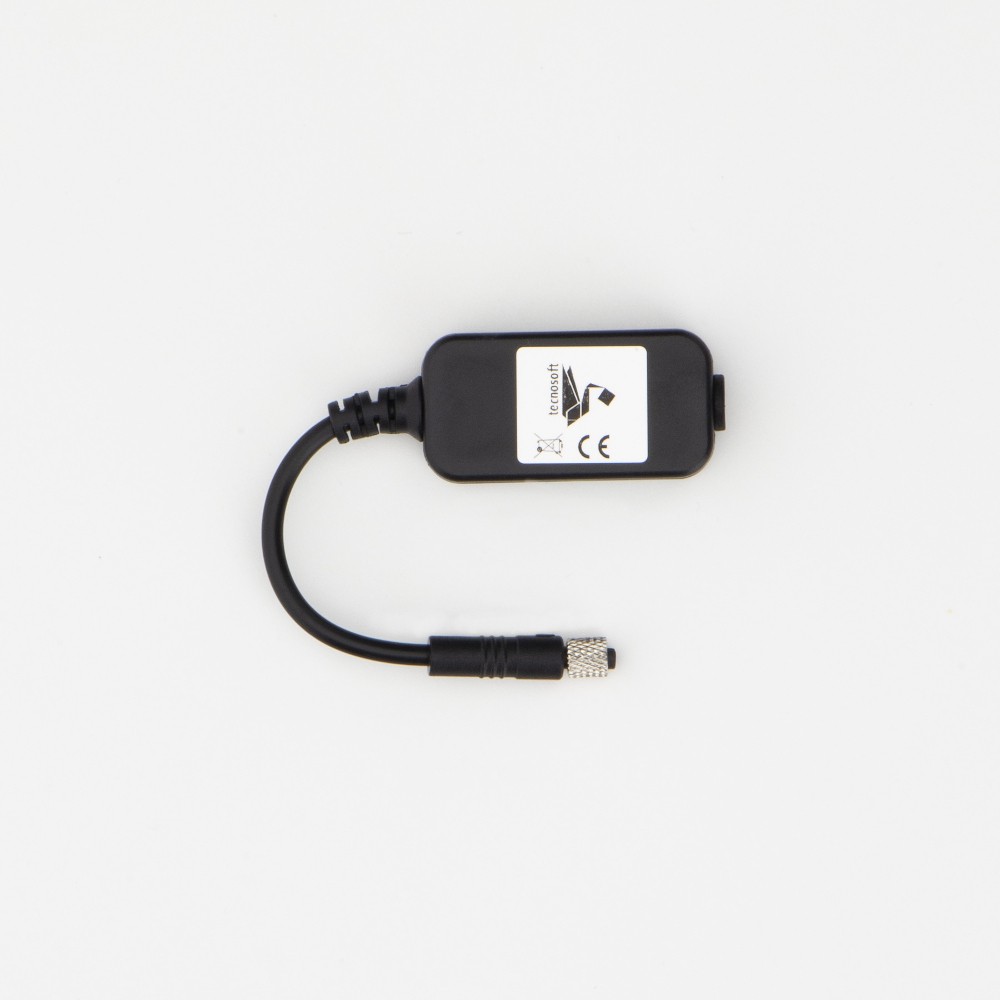

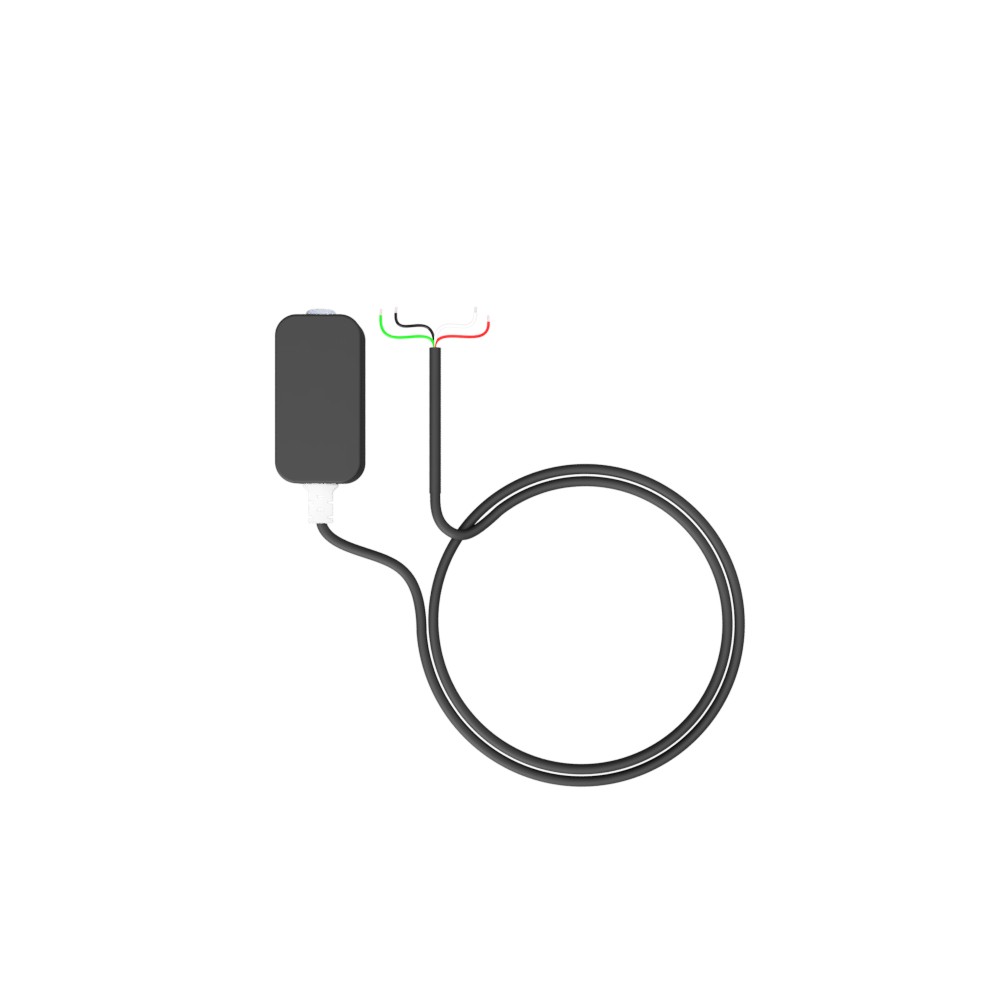

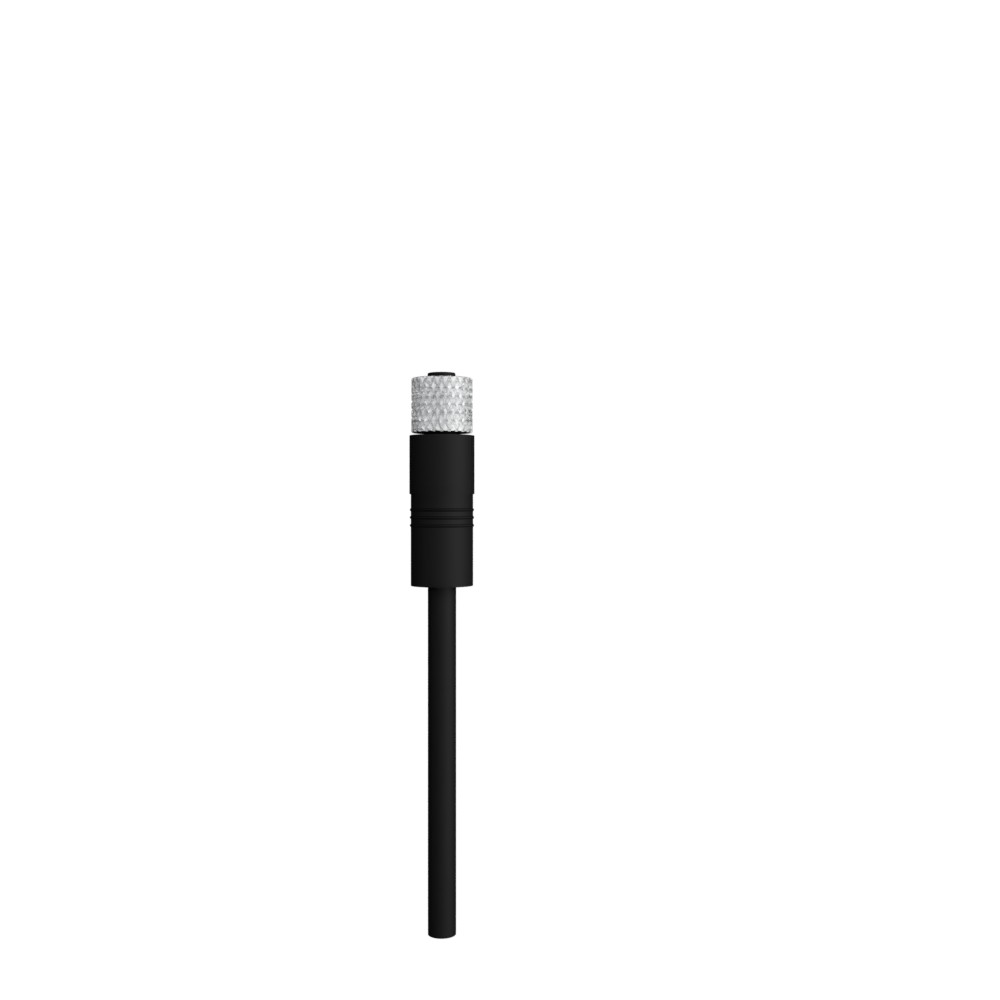

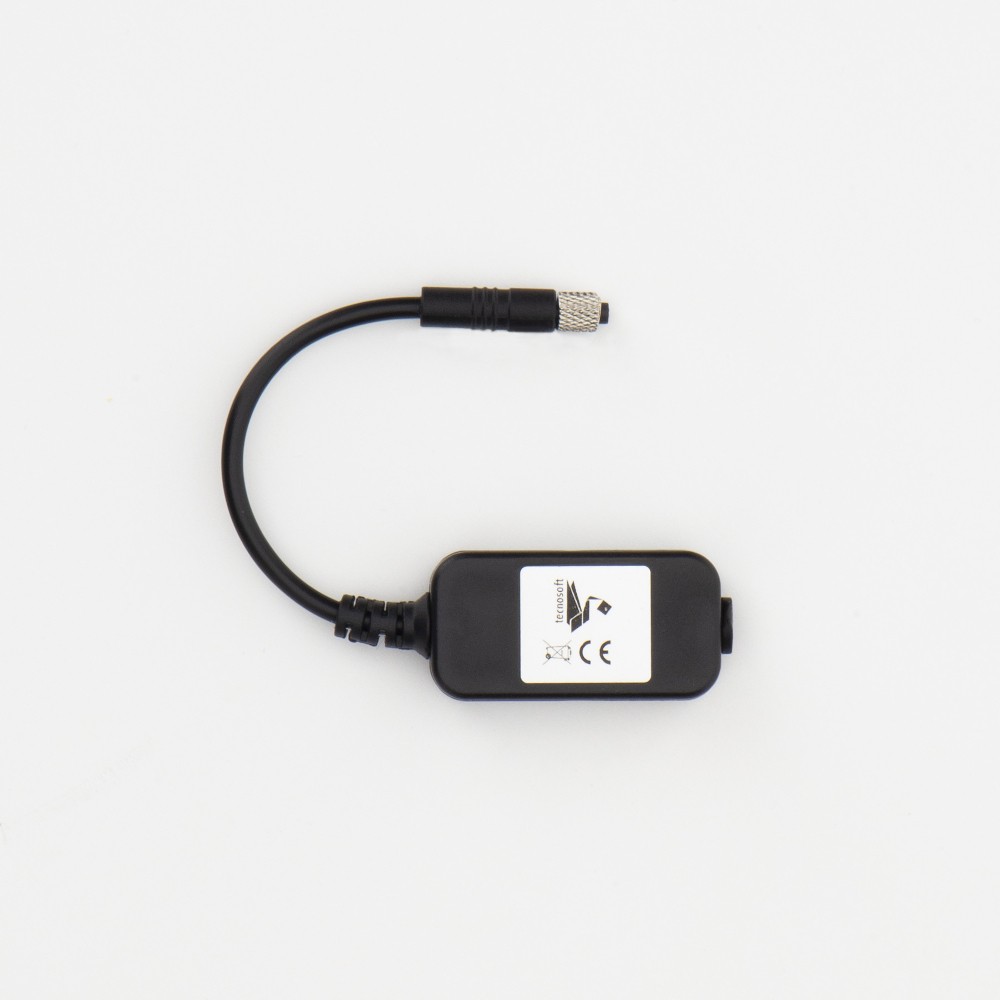

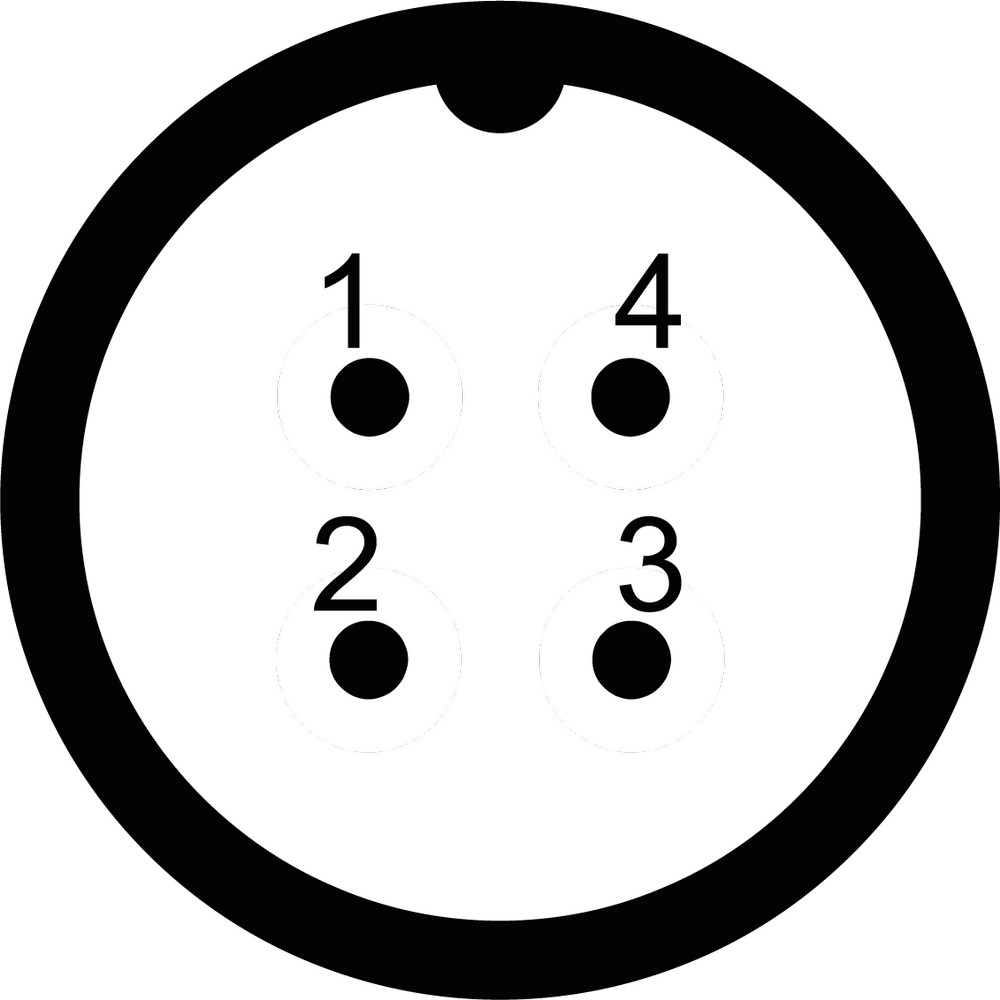

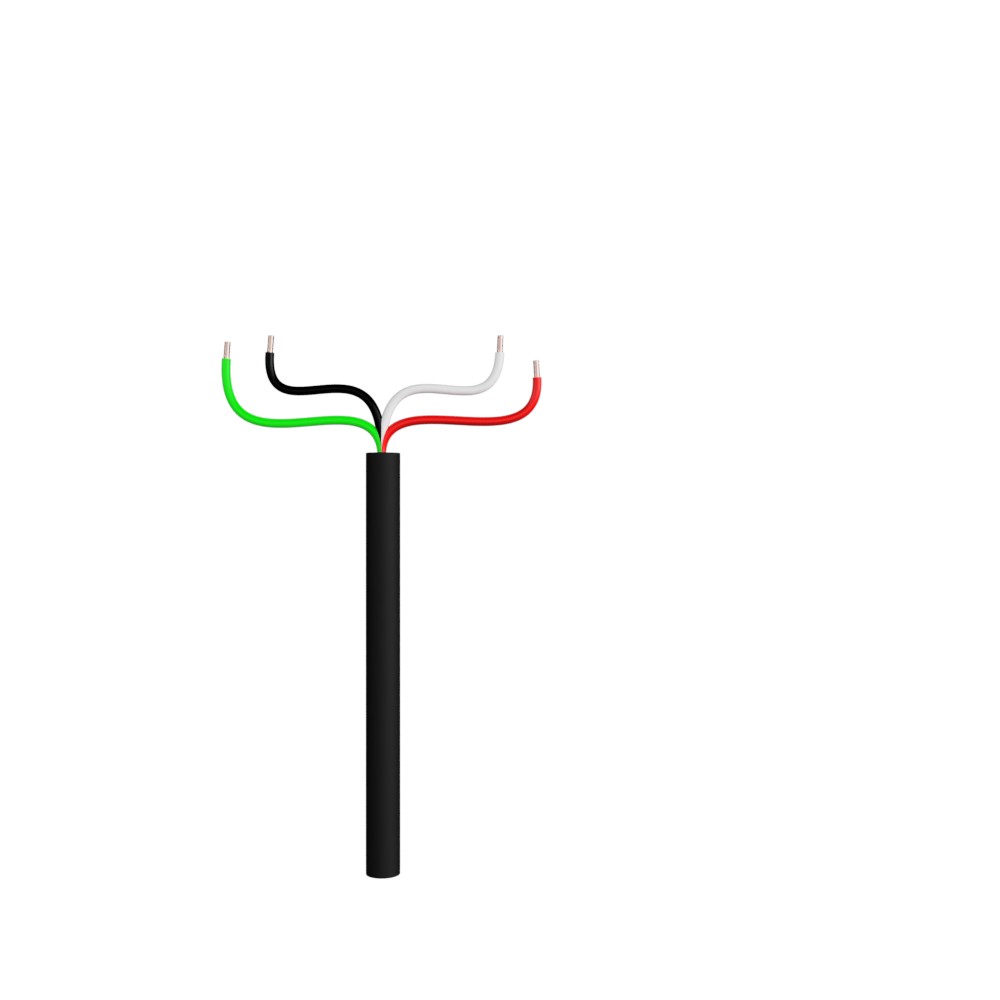

Smart temperature sensor with internal digital and calibrated sensor, ideal if you need to measure temperatures between -20 ° C and + 50 ° C. Available both with 4-pin male connector and M5 thread and with 4 free wires (2 for communication, 2 for power supply) to connect them directly to your electronics. By using extension cables you can extend the length of the sensor cable. Resolution 0.01 ° C, accuracy ± 0.2 ° C. Accredia traceable calibration certificate included (standard calibration points: -10/0/20/40°C).

Access the Support section for details on integrating into your project.

(note: the final product may be different from some designs in the pictures)

Temperature Range -20 °C ÷ +50 °C (non condensing)
Temperature sensor type PT100
Temperature Resolution 0,01 °C
Temperature Accuracy ± 0,2 °C (within the calibration range)
Standard calibration points for temperature -10/0/20/40°C
Extra calibration points of temperature Within the range -20 °C ÷ +50 °C
Dimensions 43 X 22 X 11 (mm)
Connection cable length 10 cm
Supply voltage 3.3 V
Communication Cable 500 l X 3Ø (mm)
